ACDelco Professional Serpentine Belt Replacement. Sometimes, the smallest part whispers the loudest promises, a quiet hum beneath the hood. It’s not just rubber and steel; it’s the hidden pulse of your journey, ensuring every mile unfolds with an unwavering trust, a silent commitment to the road ahead.
This comprehensive guide delves into everything you need to know about this vital component, from understanding its crucial role and the superior engineering of ACDelco belts, to a detailed step-by-step replacement process. We’ll also cover essential tools, common challenges, and crucial maintenance tips to extend your belt’s lifespan, ensuring your vehicle remains reliable on every road.
ACDelco Professional Serpentine Belts
In the quiet hum of a running engine, there lies an unseen ballet, a choreography of power and precision. The serpentine belt, often overlooked, is the vital thread that weaves together the vehicle’s essential functions. It is not merely a band of rubber, but a testament to engineered purpose, ensuring that every turn of the wheel, every breath of air conditioning, every charge of the battery, finds its rhythm.
Choosing the right belt is not just a decision; it is an affirmation of reliability, a quiet promise of journeys yet to unfold.
The Unseen Heartbeat: Features and Benefits of ACDelco Professional Serpentine Belts
When the road calls, and the miles beckon, the choice of components becomes a silent pact between driver and machine. ACDelco Professional Serpentine Belts are crafted not just from materials, but from a dedication to unwavering performance, setting them apart from the fleeting promises of generic alternatives. They are designed to endure, to deliver, to whisper confidence into the engine’s song.
| Feature | Description | Benefit |
|---|---|---|
| Advanced EPDM Rubber Compound | Engineered with Ethylene Propylene Diene Monomer (EPDM) synthetic rubber, renowned for its superior resistance to heat, ozone, and environmental stressors. This material maintains its elasticity and structural integrity over time. | Provides exceptional durability and longevity, significantly extending the belt’s service life and reducing the frequency of replacements. It resists cracking and hardening, ensuring consistent performance in diverse operating conditions. |
| Precision-Ground Rib Profile | Each rib on the belt’s surface is meticulously ground to exact dimensions, ensuring optimal contact with pulley grooves. This precise shaping minimizes slippage and enhances the transfer of power. | Facilitates efficient power transmission to all accessory components, reducing energy loss and improving overall vehicle performance. The precise fit also contributes to quieter operation by minimizing belt noise and vibration. |
| High-Strength Tensile Cords | Reinforced with robust polyester or aramid tensile cords, strategically embedded within the belt’s core. These cords are engineered to resist stretching and maintain consistent tension throughout the belt’s lifespan. | Ensures stable and reliable operation by preventing belt elongation, which can lead to loss of tension and accessory malfunction. This steadfastness helps maintain proper alignment and extends the life of associated pulleys and bearings. |
| Proprietary Adhesion Layers | Multiple layers of specialized adhesion compounds are integrated into the belt’s construction, binding the EPDM rubber to the tensile cords. This creates a cohesive and resilient structure. | Enhances the belt’s structural integrity, preventing delamination and ensuring that all components work together seamlessly under stress. This robust bonding contributes to the belt’s overall strength and resistance to fatigue. |
The Silent Symphony: Critical Role in Vehicle Operation
Within the engine bay, a complex ballet unfolds, powered by a single, continuous loop. The serpentine belt, though unassuming, is the linchpin, translating the engine’s rotational energy into the vital movements of various accessories. It is the silent orchestrator, ensuring that every system receives its necessary share of power, a continuous thread of functionality that allows the vehicle to breathe, see, and move with purpose.
Without its unwavering connection, the vehicle would cease to be a symphony, becoming instead a collection of disconnected parts.The serpentine belt powers a multitude of essential components, each playing its crucial role in the vehicle’s operation:
- Alternator: Responsible for converting mechanical energy into electrical energy, recharging the battery, and powering the vehicle’s electrical systems while the engine is running.
- Power Steering Pump: Provides hydraulic pressure that assists the driver in steering the vehicle, making turns effortless and responsive.
- Air Conditioning Compressor: Compresses refrigerant, initiating the cooling cycle that provides conditioned air to the vehicle’s cabin, ensuring passenger comfort.
- Water Pump: Circulates coolant throughout the engine block and radiator, preventing overheating and maintaining optimal operating temperatures.
- Smog Pump (Air Pump): In some vehicles, this pump is driven by the serpentine belt to inject air into the exhaust system, aiding in the reduction of harmful emissions.
- Idler and Tensioner Pulleys: While not directly powered accessories, these pulleys are crucial components within the serpentine belt system, guiding the belt and maintaining the correct tension for efficient operation of all other components.
The serpentine belt is the unwavering conduit, channeling the engine’s vitality to every accessory, a constant whisper of power that sustains the journey.
Woven Resilience: Materials and Engineering of ACDelco Professional Belts
The true strength of an ACDelco Professional Serpentine Belt lies not just in its visible form, but in the intricate layers woven beneath its surface, a testament to thoughtful engineering. Each belt is a carefully constructed composite, designed to withstand the relentless forces of heat, friction, and tension that define an engine’s environment. This multi-layered approach ensures a product that is not merely functional but inherently durable and reliably consistent, much like a steadfast companion on a long road.At its core, an ACDelco Professional Serpentine Belt is a marvel of material science and structural design, meticulously crafted to endure.
Visualizing its cross-section reveals a sophisticated architecture, each layer contributing to its overall resilience and performance:The outermost layer, the back cover, often a smooth, wear-resistant fabric, serves as a protective shield against abrasion and environmental contaminants, while also providing a low-friction surface for backside idlers. Beneath this, the tensile cords, often made of high-strength polyester or aramid fibers, form the very backbone of the belt.
These cords are the primary load-bearing element, engineered to resist elongation and maintain consistent tension, thereby preventing slippage and ensuring precise accessory drive speeds. Surrounding these cords is the adhesion gum, a specialized rubber compound that securely bonds the tensile cords to the outer and inner layers, preventing delamination and ensuring the structural integrity of the belt under dynamic stress.
The innermost section, the compression section or ribs, is typically composed of a high-modulus EPDM rubber compound. This material is formulated to resist cracking and fatigue, especially when flexing around pulleys. The precisely molded ribs are designed to interlock perfectly with the pulley grooves, maximizing surface contact for efficient power transfer and minimizing noise. This layered construction, a harmonious blend of flexibility, strength, and heat resistance, allows the belt to flex millions of times over its lifespan without faltering, a quiet testament to its enduring design.
Step-by-Step Guide to Serpentine Belt Replacement
In the quiet machinery of our daily lives, there are moments when the rhythm falters, a whisper of wear hinting at what lies beneath. The serpentine belt, a vital artery of the engine, ensures the steady beat of power, driving the accessories that make our journeys smooth. When its song grows weary, a gentle hand, guided by knowledge, can restore its hum.This guide unfolds the careful choreography of replacing a serpentine belt, a meticulous dance of detachment and renewal, ensuring the heart of your vehicle beats strong once more.
Each step is a quiet promise of precision, leading to the restoration of harmony.
Safety Precautions and Preparation
Before the work begins, a pause for safety. It is in these moments of careful preparation that we lay the foundation for a successful repair, protecting both the vehicle and the hands that tend to it.
-
Vehicle Cooling and Stability: Allow the engine to cool completely. The warmth of a recently run engine can hold hidden dangers, a silent heat that demands respect. Ensure the vehicle is parked on a level surface, the parking brake engaged, and if lifted, secured with jack stands.
-
Battery Disconnection: Disconnect the negative battery cable. This simple act severs the electrical current, preventing accidental starts or shorts, a quiet safeguard against unforeseen sparks.
-
Personal Protective Equipment (PPE): Adorn yourself with safety glasses and gloves. These are not mere accessories but a shield against the unexpected, guarding against flying debris or the bite of grease and grime.
-
Belt Routing Diagram: Locate or draw a diagram of the existing belt’s routing. This map, often found under the hood, is an invaluable guide, preventing the tangled confusion of misrouted paths. It is the memory of the belt’s intricate journey.
Essential Tools and Equipment
In this delicate operation, the right tools are not merely instruments but extensions of intent, each with a purpose, a silent partner in the task at hand. They are the quiet companions that transform effort into precision.
| Tool | Purpose |
|---|---|
| Ratchet and Socket Set (typically 3/8″ or 1/2″ drive) | Used to engage the tensioner arm to release belt tension. Specific socket sizes will vary by vehicle model and tensioner type. |
| Serpentine Belt Tool (specialized, if needed) | Some vehicles, particularly those with limited access, may require a specialized, longer-handled tool with various adapters to reach and manipulate the tensioner pulley. |
| Torque Wrench | For re-tightening any bolts that were loosened (e.g., idler pulleys, fixed tensioners) to the manufacturer’s specified torque, ensuring proper tension and preventing over-tightening. |
| Gloves (mechanic’s or nitrile) | Protects hands from grease, dirt, and sharp edges, offering a layer of safety and cleanliness. |
| Safety Glasses | Shields eyes from any debris that may dislodge during the process, a vital protection against the unseen. |
| Flashlight or Work Light | Illuminates the often-dark crevices of the engine bay, revealing the intricate paths and hidden components. |
| Pry Bar or Lever (optional) | May be useful for stubborn tensioners or to gently maneuver the belt into place in tight spots. |
| New ACDelco Professional Serpentine Belt | The very heart of the replacement, chosen for its quality and precise fit, promising renewed life and quiet operation. |
Comprehensive Serpentine Belt Replacement Procedure
With tools laid out and safety observed, the transformation begins. Each step is a deliberate motion, a part of the careful unweaving and reweaving of the engine’s silent song.
-
Review the Belt Routing Diagram: Before touching anything, re-confirm the belt’s intricate path from the diagram. It is the blueprint of its former life, essential for the new one.
-
Locate the Belt Tensioner: Identify the automatic belt tensioner. This pivotal component, often spring-loaded, maintains the belt’s tautness. Its location varies, but it typically has a square hole or a bolt head designed for a wrench or socket.
-
Release Belt Tension: Insert the appropriate size ratchet, breaker bar, or specialized serpentine belt tool into the tensioner’s square hole or onto its bolt head. Gently, but firmly, rotate the tensioner in the direction indicated by the arrow (usually clockwise or counter-clockwise, depending on the design) to relieve tension on the belt. Hold it in this position.
-
Remove the Old Belt: While the tensioner is held open, carefully slip the old belt off one of the pulleys, then continue to unthread it from all other pulleys. Once freed, release the tensioner slowly and remove the old belt completely. Note its condition, a silent story of its long service.
-
Inspect Pulleys and Components: With the belt removed, gently spin each pulley (alternator, power steering pump, AC compressor, idler pulleys). Listen for any grinding, squeaking, or roughness. Check for excessive wobble or play. Any signs of wear suggest a need for replacement of the pulley or component, as a faulty pulley can quickly damage a new belt.
-
Route the New ACDelco Professional Serpentine Belt: Begin by threading the new belt around all the stationary pulleys first, leaving the tensioner pulley or one easily accessible pulley for last. Refer constantly to your diagram. This is where precision matters most, ensuring every curve and twist mirrors the original path.
-
Apply Tension to the New Belt: Once the belt is mostly routed, again engage the tensioner with your tool, rotating it to create slack. Slip the remaining section of the belt over the final pulley. Slowly release the tensioner, allowing it to apply the correct tension to the new belt. Ensure the belt seats properly in all the pulley grooves.
-
Double-Check Routing and Alignment: Before starting the engine, meticulously inspect the entire belt path. Ensure it is perfectly seated in every groove of every pulley, with no twists or misalignments. A single misplaced rib can lead to immediate belt failure.
-
Reconnect Battery and Test: Reconnect the negative battery cable. Start the engine and let it run for a few moments, observing the new belt. Listen for any unusual noises—squealing, chirping, or flapping. Visually confirm that the belt runs smoothly and centrally on all pulleys.
-
Final Inspection: Turn off the engine. Perform one last visual check of the belt and pulleys. The new ACDelco Professional Serpentine Belt should now be a quiet testament to a job well done, ready for the journeys ahead.
Common Challenges and Practical Solutions
Even in the most straightforward tasks, challenges may arise, like shadows stretching in the evening light. Yet, for every obstacle, there is a solution, a quiet path found through understanding and patience.The release of the belt tensioner can sometimes present a silent struggle, a moment of resistance against change. The method often hinges on the tensioner’s design, each type yielding to a specific touch.
The most common tensioner designs include spring-loaded automatic tensioners and, less frequently, manually adjustable or hydraulic tensioners. Understanding which type your vehicle employs is the first step to a smooth release.
* Difficulty Releasing Tensioner:
Solution
For spring-loaded automatic tensioners, which are the most common, a standard 1/2-inch or 3/8-inch drive ratchet or breaker bar typically fits into a square hole on the tensioner arm. Apply steady, firm pressure in the indicated direction (often clockwise to compress the spring, or counter-clockwise). If access is limited, a specialized serpentine belt tool with a longer handle and slim profile can provide the necessary leverage.
For instance, on many Ford F-150 trucks with the 5.0L engine, a long-handled serpentine belt tool is almost essential due to the confined space around the tensioner pulley. On some older Honda Civic models, a specific wrench size (e.g., 14mm or 19mm) directly on the tensioner bolt head may be required. Some vehicles, particularly older European models like certain BMW E46 3-Series, might use a tensioner that requires a specific pin or Allen key to hold it in the compressed position, or a hydraulic dampener that needs to be compressed slowly.
Always consult the vehicle’s service manual for the exact procedure. If the tensioner feels exceptionally stiff or won’t move, it may be seized and require replacement itself, a sign that its own quiet service has ended.* Incorrect Belt Routing:
Solution
This is a common pitfall, where the new belt, like a misplaced thought, fails to follow the correct path. The diagram, whether a sticker under the hood, a page from the service manual, or a photograph taken before removal, is your infallible guide. Before installing the new belt, trace the path with your finger on the diagram, then visualize it on the engine.
Begin routing the belt around the pulleys that are fixed, such as the crankshaft, alternator, and water pump, leaving the tensioner pulley or an easily accessible idler pulley for last. This systematic approach reduces the chance of error. For example, on a Chevrolet Silverado with the 5.3L V8, the complex routing around multiple idlers and accessories demands careful attention to the diagram, as a slight deviation can cause the belt to slip or fray.* Stripped Bolts or Nuts on Pulleys/Tensioners:
Solution
When a bolt resists, seemingly fused by time and corrosion, patience becomes the strongest tool. Apply penetrating oil (like WD-40 or Liquid Wrench) and allow it to soak for at least 15-30 minutes, or even overnight if severely seized. Ensure the socket or wrench fits snugly to prevent rounding. If a bolt head is already rounded, specialized bolt extractor sockets can often grip the damaged head.
In extreme cases, a small impact wrench, used judiciously, can sometimes break free a stubborn fastener without stripping it further. Remember, excessive force can lead to broken bolts, a more complex repair.* Damaged or Noisy Pulleys/Components:
Solution
A new belt on a faulty pulley is like a fresh canvas on a broken easel. Before installing the new belt, thoroughly inspect all pulleys. Spin each by hand; listen for grinding, squealing, or rumbling noises. Check for any wobble or excessive play. The idler pulleys and the tensioner pulley are common culprits for wear.
If a pulley feels rough or makes noise, it should be replaced. For example, a noisy idler pulley on a Toyota Camry often indicates worn bearings, which, if ignored, can cause the new belt to wear prematurely or even fail. Replacing these components alongside the belt ensures the entire system functions harmoniously, extending the life of the new ACDelco Professional Serpentine Belt.
Post-Replacement Care and Extending Serpentine Belt Life

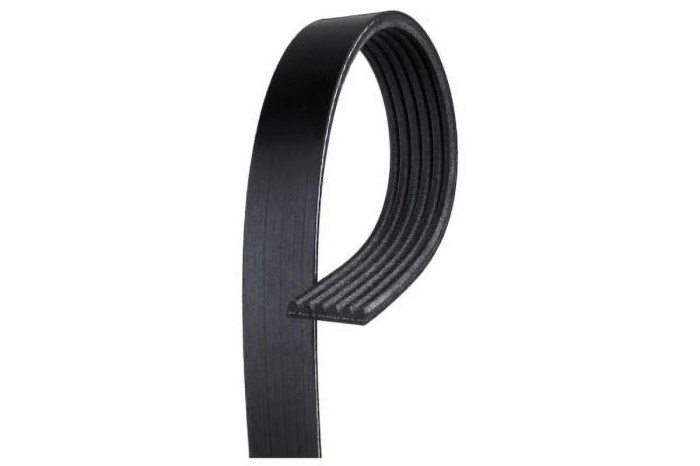

Source: walmartimages.com
The journey of a vehicle, much like life itself, is a delicate balance of interconnected parts, each playing its silent, vital role. A newly installed ACDelco Professional Serpentine Belt breathes fresh life into this intricate system, a promise of smooth journeys ahead. Yet, even the most robust beginnings require a tender hand, a watchful eye, to ensure their longevity. To ignore the subtle cues of wear is to invite the unforeseen, to allow the whisper of a failing component to grow into a clamor of despair.
This is not merely about maintenance; it is about foresight, about preserving the quiet symphony of motion that carries us forward.
The Whispers of Wear: Recognizing a Failing Belt, ACDelco Professional Serpentine Belt Replacement
Even after a meticulous replacement, the passage of time and the relentless rhythm of the engine will inevitably leave their mark. A serpentine belt, though designed for endurance, will eventually begin to show the tell-tale signs of its weakening resolve. To discern these early warnings is to possess the wisdom of prevention, averting the sudden silence of a journey interrupted.
Listen closely, observe keenly, for the vehicle often speaks in subtle shifts and unexpected sounds when its vital connections begin to fray.
- The Squeal or Chirp: A high-pitched shriek, often most pronounced during cold starts or when the steering wheel is turned sharply, is the belt’s cry for attention. It signals a loss of tension, a glazing of the belt’s surface, or perhaps a misalignment, causing it to slip against the pulleys. This slippage is not just an auditory nuisance; it is a direct indication of lost power transfer, a harbinger of eventual failure.
- Visible Cracks or Fraying: A direct visual inspection reveals the truth etched upon the belt’s surface. Small, superficial cracks across the ribbed side are early indicators of material fatigue, a hardening brought on by heat and age. Deeper cracks, or a noticeable fraying along the edges, speak of a belt nearing its end, its structural integrity compromised, like threads unraveling from a worn tapestry.
- Glazing or Shininess: The working surface of a healthy belt should possess a matte, almost dull finish. If the ribbed side appears smooth, shiny, or slick, it indicates glazing. This occurs when the belt slips excessively, generating heat that hardens its rubber compound, reducing its grip on the pulleys. A glazed belt is a less efficient belt, a quiet concession to the forces of friction.
- Missing Ribs or Chunks: The most severe visual sign, where sections of the belt’s ribs are missing, or entire chunks of material have flaked off. This suggests extreme wear, possibly due to prolonged slippage, an impact with a foreign object, or a failing accessory that has torn at its surface. Such a belt is a ticking silence, its collapse imminent.
- Unusual Vibrations or Noises from Accessories: A loose or failing belt can transmit vibrations through the system, or cause connected components like the power steering pump or alternator to emit unusual whirring, grinding, or rattling sounds as they struggle to receive consistent power. These are the deeper, more unsettling tremors of a system out of harmony.
- Dashboard Warning Lights: The illumination of the battery light, the overheating indicator, or even the power steering warning, can often be traced back to a failing serpentine belt. These lights are the dashboard’s urgent messages, signaling that the alternator is not charging, the water pump is not circulating coolant, or the power steering pump is not assisting, all consequences of a belt no longer performing its duties.
The Art of Preservation: Nurturing Your New Belt’s Journey
A new ACDelco Professional Serpentine Belt is an investment in reliability, a fresh start for your vehicle’s ancillary systems. To extend its lifespan, to ensure it serves faithfully for miles untold, requires not grand gestures, but consistent, mindful attention. Routine maintenance is the quiet promise kept, the diligent practice that transforms potential failures into prolonged, unwavering performance. It is the art of nurturing, allowing the belt to fulfill its intended destiny without premature decay.
- Regular Visual Inspections: Dedicate a moment every 10,000 to 15,000 miles, or at least once a year, to visually inspect the belt. Look for the signs detailed above: cracks, fraying, glazing, or missing material. A quick glance can reveal much, like reading the subtle lines on a weathered map. This can often be done during routine oil changes or tire rotations, integrating seamlessly into existing maintenance habits.
- Check Belt Tension: While modern belts are often self-tensioning, it is still prudent to ensure the tensioner is functioning correctly. A belt that is too loose will slip, generating heat and wear; one that is too tight can strain bearings in connected accessories. Consult your vehicle’s service manual for specific tension check procedures, if applicable, or have a professional verify it.
- Inspect Pulleys and Bearings: With the engine off, gently rotate each pulley by hand. They should turn smoothly and quietly, without wobble or resistance. Listen for any grinding, squealing, or clicking sounds, which indicate worn bearings. A faulty pulley can quickly damage even a new belt, like a rough patch in a smooth road.
- Address Fluid Leaks Promptly: Oil, coolant, or power steering fluid leaks are the silent assassins of serpentine belts. These fluids degrade the rubber compound, causing it to swell, soften, and lose its grip. Any signs of leaks near the belt path should be investigated and repaired immediately. Clean any fluid residue from the belt and pulleys to prevent further damage.
- Maintain Proper Alignment: Ensure all pulleys are correctly aligned. Misalignment causes uneven wear on the belt and can lead to premature failure. This is usually a professional check, but awareness of its importance is key.
- Keep Belt and Pulleys Clean: Accumulation of dirt, grime, or road debris on the belt or pulleys can cause abrasive wear. A simple wipe-down during inspections can help maintain optimal contact and reduce unnecessary friction.
The Unforeseen Silence: Consequences of a Broken Belt
Imagine a journey unfolding, the highway stretching before you, the engine’s hum a steady companion. Then, without warning, a sudden jolt, a flash of red on the dashboard, and the once-familiar sounds of the engine begin to falter. This is the abrupt, disorienting reality of a broken serpentine belt. It is not merely an inconvenience; it is a profound disruption, a severing of vital connections that can leave you stranded and facing a cascade of costly complications.The serpentine belt is the single, unifying force that drives many of your vehicle’s critical accessory components.
When it snaps, the immediate effects are startling and severe. The power steering pump, suddenly deprived of its drive, ceases to assist, transforming the effortless turning of the wheel into a strenuous battle. The air conditioning compressor falls silent, leaving you vulnerable to the elements. Most critically, the alternator stops charging the battery, and the water pump ceases to circulate coolant.
The quiet hum of efficiency, once assured, gives way to a mournful shriek, a tell-tale lament from a belt weary with time.
Consider a scenario: You are driving on a desolate stretch of highway, miles from the nearest town. Suddenly, the steering wheel becomes incredibly heavy, almost impossible to turn. Simultaneously, the battery warning light illuminates on your dashboard, a stark red reminder of dwindling power. Within moments, the engine temperature gauge begins to climb rapidly, nearing the red zone, as the water pump, now motionless, fails to cool the engine.
The air conditioning, once a cool comfort, now blows only warm air. If you continue to drive, even for a short distance, the battery will quickly drain, causing the engine to sputter and die, leaving you powerless. More ominously, the engine, without circulating coolant, will rapidly overheat, risking severe and irreversible damage to critical components like the cylinder head, head gasket, or even the entire engine block.
This unexpected breakdown transforms a simple drive into a precarious situation, necessitating a costly tow, potentially extensive engine repairs, and the deep frustration of being stranded far from assistance. The broken belt, a small component, holds the power to unravel an entire journey.
Closure: ACDelco Professional Serpentine Belt Replacement
As the last turn of the wrench echoes, and your engine finds its renewed rhythm, remember the silent strength of your ACDelco Professional Serpentine Belt. It’s more than just a part; it’s the quiet guardian of your travels, a testament to care, ensuring every drive is not merely a destination, but a smooth, uninterrupted story, waiting to be written. Trust in its quiet hum, and let your adventures continue, boundless and true.
