Preparation and Essential Components

Before the quiet pulse of a new beginning, a thoughtful preparation must unfold. Like the delicate unravelling of a memory, each step, each component, holds its own quiet significance. To introduce the Holley Red Electric Fuel Pump into the heart of your vehicle’s fuel system is to embark on a journey of precision and care, ensuring a seamless flow where only interruption once resided.This foundational stage is not merely about gathering items; it is about setting the stage for a reliable transformation, a meticulous arrangement where every element, from the smallest washer to the most vital safety measure, plays its indispensable part.

The whisper of readiness hangs in the air, awaiting the moment when these carefully chosen pieces converge into a single, purposeful function.

Safety Precautions for Fuel System Work

Working with a vehicle’s fuel system demands an unwavering respect for safety, a quiet acknowledgment of the potential hazards that linger. Before any wrench turns or connection is made, a series of deliberate actions must be taken to safeguard against the unforeseen, ensuring that the only outcome is the successful hum of your new pump.

“In the delicate dance of repair, safety is the unspoken promise, the first and last thought that guides every careful hand.”

These precautions are not mere suggestions but vital safeguards:

• Ventilation: Ensure the work area is thoroughly ventilated. Fuel vapors are heavier than air and can accumulate, posing a significant fire hazard. Work outdoors or in a well-ventilated garage with doors open.
• Battery Disconnection: Disconnect the vehicle’s negative battery terminal first. This eliminates any power to the electrical system, preventing accidental sparks during fuel line disconnection or electrical wiring.
• Fire Extinguisher: Keep a Class B fire extinguisher (suitable for flammable liquids) within immediate reach. This provides an essential safety net should an unforeseen ignition occur.
• Eye Protection: Always wear safety glasses or goggles to protect your eyes from fuel splashes, debris, or unexpected pressure releases.
• Gloves: Utilize fuel-resistant gloves to protect your skin from direct contact with gasoline, which can cause irritation and is harmful if absorbed.
• Fuel System Depressurization: Before disconnecting any fuel lines, relieve the fuel system pressure. This is typically done by removing the fuel pump fuse and cranking the engine until it stalls, or by locating a Schrader valve on the fuel rail and carefully depressing its core with a rag to catch any fuel.
• Spill Containment: Place drip pans or absorbent rags beneath fuel lines and components to catch any spilled fuel, minimizing fire hazards and environmental contamination.
• No Open Flames or Sparks: Absolutely no smoking, open flames, or spark-producing tools should be present in the work area. This includes portable lights that are not rated for hazardous environments.

Essential Tools for Installation

Each task, a careful ballet of intention and execution, requires the right instruments. For the delicate operation of integrating a Holley Red Electric Fuel Pump, a collection of specific tools becomes an extension of your will, enabling precision and secure connections. These are the silent partners in your mechanical endeavor, waiting to fulfill their purpose.The following tools are typically required for a successful installation:

• Socket Wrench Set: Essential for tightening and loosening various nuts and bolts, especially those for mounting brackets and hose clamps.
• Open-End/Box-End Wrench Set: For fasteners in confined spaces or where sockets cannot reach, particularly useful for fuel line fittings.
• Screwdriver Set (Phillips and Flathead): For hose clamps, mounting screws, and various panel removals.
• Fuel Line Disconnect Tools: Specific tools designed to safely disconnect quick-connect fuel lines without damage.
• Hose Cutters or Sharp Utility Knife: For cleanly cutting fuel hose to the desired length, ensuring a smooth, leak-free connection.
• Wire Strippers/Crimpers: For preparing electrical wires and securely attaching terminals.
• Multimeter/Test Light: To verify power and ground connections, and troubleshoot electrical circuits.
• Drill and Drill Bits: For creating mounting holes if existing ones are not suitable.
• Bench Vise (Optional but Recommended): To hold components securely during assembly or hose cutting.
• Torque Wrench: To ensure fasteners are tightened to manufacturer specifications, preventing over-tightening or loosening.
• Drain Pan and Funnel: For safely draining and collecting fuel from the tank or lines.
• Shop Rags/Absorbent Towels: For cleaning spills and wiping down components.

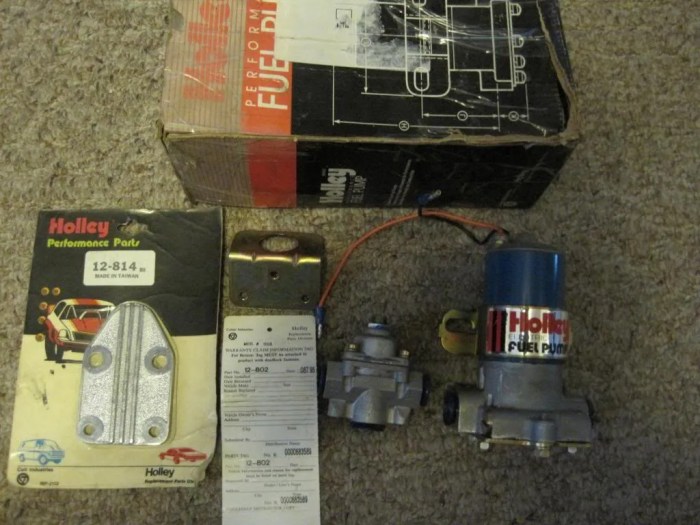

Holley Red Electric Fuel Pump Components and Supplementary Parts

Within the quiet confines of the Holley Red Electric Fuel Pump kit lies the promise of renewed flow, a heart ready to beat within your vehicle’s system. Yet, like a story needing its full cast, certain supplementary parts often complete the narrative, ensuring not just functionality, but optimal performance and longevity.A standard Holley Red Electric Fuel Pump kit typically includes:

• Holley Red Electric Fuel Pump: The central component, designed for carbureted applications, offering a consistent fuel supply.
• Mounting Bracket: A sturdy bracket engineered to securely hold the pump in its chosen location, often with rubber isolators to minimize vibration and noise.
• Mounting Hardware: Bolts, nuts, and washers necessary for attaching the pump to the vehicle’s chassis or frame.
• Fuel Fittings (Inlet and Outlet): Often NPT (National Pipe Taper) or AN (Army-Navy) style fittings to connect fuel lines to the pump. Common sizes might include 3/8″ NPT.
• Basic Electrical Connectors: Sometimes includes simple spade terminals or ring terminals for power and ground connections.

For a complete and robust installation, the following supplementary parts are highly recommended:

• Fuel-Rated Hose: High-quality, fuel-injection rated rubber hose (e.g., SAE 30R9) or braided stainless steel AN lines, suitable for the pressure and type of fuel.
• Hose Clamps: Fuel-injection specific clamps (e.g., EFI clamps or constant tension clamps) to secure hoses to fittings, preventing leaks under pressure.
• Pre-Filter (100 Micron): A coarse filter installed
  -before* the pump to protect it from large debris in the fuel tank. This is crucial for pump longevity.
• Post-Filter (10 Micron): A finer filter installed
  -after* the pump and before the carburetor, to ensure clean fuel delivery to the engine.
• Fuel Pressure Regulator: Essential for carbureted systems to reduce the pump’s higher output pressure (typically 7 PSI for the Red Pump) to the specific pressure required by the carburetor (usually 5-7 PSI).
• Fuel Pressure Gauge: For monitoring the actual fuel pressure at the carburetor, aiding in diagnosis and tuning.
• Fuel Pump Relay and Wiring Kit: A dedicated relay ensures the pump receives consistent voltage and current, protecting the vehicle’s original wiring harness and providing a safer, more reliable power source. Often includes an oil pressure safety switch to shut off the pump in case of an accident.
• Thread Sealant/Tape (Fuel-Rated): For NPT fittings to prevent leaks. Ensure it is specifically rated for gasoline.

Ideal Mounting Location Considerations, Holley Red Electric Fuel Pump Installation

The chosen resting place for the Holley Red Electric Fuel Pump is not merely a spot, but a strategic decision that influences its longevity, performance, and the quiet rhythm of its operation. Like finding the perfect niche for a cherished object, its location must be considered with care, balancing accessibility with protection and optimal function.Considerations for the ideal mounting location include:

• Proximity to Fuel Tank: The pump should be mounted as close to the fuel tank as possible, and ideally, lower than the bottom of the tank. Electric fuel pumps are designed to push fuel more effectively than they pull it (they “push” against gravity and resistance). Mounting it low and close minimizes the effort required to draw fuel, reducing strain and vapor lock potential.

• Protection from Road Debris and Heat: The pump must be shielded from road debris, rocks, and water spray. Avoid mounting it directly exposed to the underside of the vehicle. Furthermore, keep it away from significant heat sources like exhaust pipes, which can lead to fuel overheating and vapor lock.
• Accessibility for Maintenance: While protected, the pump should remain reasonably accessible for future maintenance, such as changing fuel filters or inspecting connections. Consider locations that allow for easy removal if needed.
• Vibration Isolation: Utilize the provided rubber isolators or additional rubber mounts between the pump and the mounting surface. This minimizes noise transmission into the cabin and reduces wear on the pump from vehicle vibrations.
• Structural Integrity: The mounting surface must be sturdy and capable of supporting the pump’s weight and the vibrations it produces. The vehicle’s frame rail or a robust crossmember are often ideal. Avoid mounting to thin sheet metal.
• Electrical Connection Safety: Ensure the chosen location allows for clean, direct, and protected routing of electrical wiring, away from sharp edges, moving parts, and extreme heat.

Visual Description: Workbench Ready for Installation

Imagine a quiet space, bathed in the soft, diffused light of a workshop, where anticipation hums like a low, steady current. A sturdy workbench, its surface a testament to countless projects, now becomes the stage for a new beginning. Laid out with a meticulous order, each tool and component rests, a silent promise of the work to come.In the foreground, a vibrant red Holley electric fuel pump gleams, its smooth metallic body a focal point, nestled within its black rubber isolation mounts.

Nearby, its mounting bracket, a piece of sturdy steel, lies ready. To its left, a small array of essential tools are arranged with purpose: a gleaming set of chrome socket wrenches, their various sizes lined up like soldiers; a pair of well-worn but sharp wire strippers, their handles a comforting blue; and a precision multimeter, its digital display dark for now, awaiting the flow of current.

A roll of new, black fuel-rated hose, still coiled, sits patiently beside a pair of specialized hose cutters.To the right, the supplementary components are thoughtfully placed. A compact, cylindrical pre-filter, its clear housing hinting at the fine mesh within, rests beside a slightly larger, more robust post-filter. A polished fuel pressure regulator, intricate with its adjustment knob and ports, waits to temper the fuel’s journey.

Small bags of fittings—AN adapters, hose clamps—are neatly grouped, their metallic glint catching the light. A small, amber-colored bottle of fuel-rated thread sealant stands sentinel. The entire arrangement speaks of readiness, a quiet confidence in the task ahead, each item poised for its moment in the symphony of installation.

Closure: Holley Red Electric Fuel Pump Installation

As the final connection clicks into place and the engine purrs with renewed vigor, the journey of Holley Red Electric Fuel Pump Installation culminates in a quiet triumph. It’s the satisfaction of a task meticulously completed, a testament to precision and care, ensuring your vehicle’s heart beats with unwavering power and reliability for countless miles to come. This shared endeavor leaves you not just with a working pump, but with the quiet confidence of a master craftsman.
